Mine Welded Mesh is used for coal mine roofing, tunnels, bridge construction, road-based mesh, construction site building material. The common mesh we supplied is weld mesh and diamond mesh.

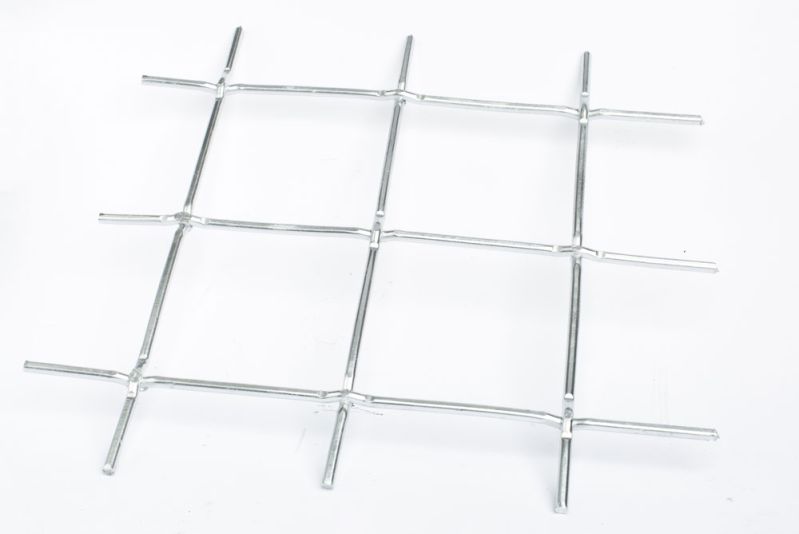

Products Name: Welded Mesh
Hole Size(mm): 50-250
Wire Diameter(mm): 3.5-8
Size: According to your demand
Application: The mine welded mesh is used for the construction of roof, tunnel, bridge construction, subgrade network reinforcement and construction site. Extensive use of mesh, mechanical equipment protection, highway guardrail;Sports venues fence, road green belt protection network; Mine underground protection, etc. After making containers ,the mining mesh is used to protect and support seawalls, hillsides, road Bridges, reservoirs and other civil works by filling the net box with stones. It is a good material for flood control.It can also be used in the manufacture of handicrafts, the transmission network of mechanical equipment.
Specification: The commonly used size of mesh is: 1m*2m, 1m*3m, 2m*3m, 1.5m*2.5m; It can be customized according to customer’s requirement.
Characteristic: Strong welding, uniform mesh, smooth surface, corrosion resistance, strong strength, strong protection; Low cost, strong security, high repetition rate, more beautiful appearance, more competitive market in the future; High precision, small error, good quality, simple operation, safety fire prevention, long service life, cheap beauty; The supporting mesh has a high tensile strength, the net surface is smooth, and it is not easy to open, and the safety factor has reached the national standard.
|1500mm x 2400mm||100mm x 100mm||4.00mm||7.470 |
|6000mm x 2400mm||100mm x 100mm||4.00mm||28.910|
|4000mm x 2400mm||100mm x 100mm||4.00mm||19.310|
|3400mm x 1500mm||100mm x 100mm||4.00mm||10.590|
|3400mm x 1500mm||100mm x 100mm||5.60mm||20.500|
